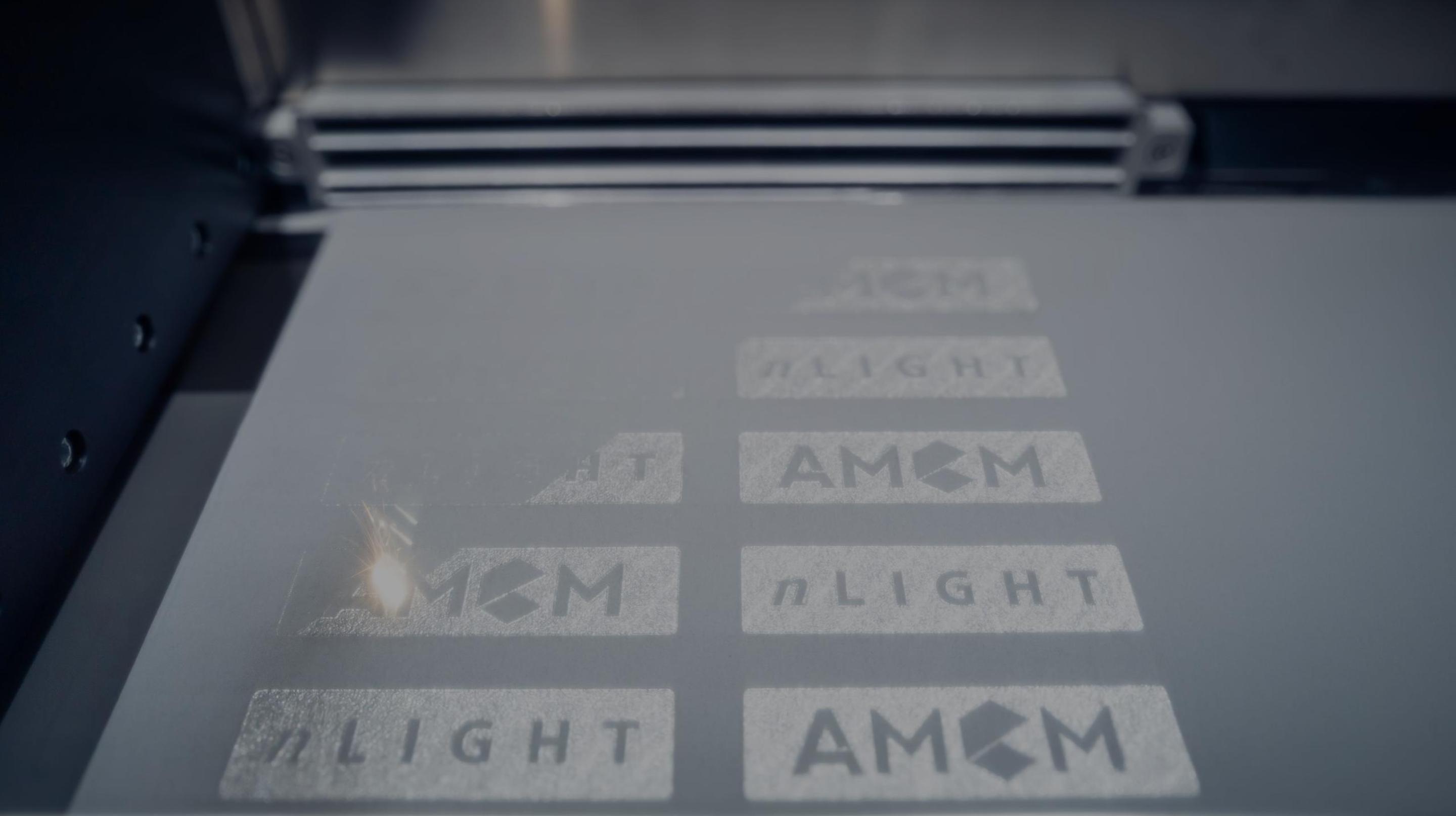

Powder Bed Fusion with Laser Prints AMCM and nLIGHT Logos

M 290 FLX

Beam Shaping

3x higher productivity. From Gaussian to ring-shaped beams.

Compatible with legacy EOS M 290 (400 W) processes at 85 μm spot size - additional productivity and design possibilities gained from six ring modes

2x

1.2 kW nLIGHT AFX
3x

Higher productivity
500°C

Build plate temperature possible with plug-in module
7x

85-210 µm spot size modes

AMCM offers the first industry-ready 3D printing system with the nLIGHT AFX-1200 fiber laser. Change the beam shape from the well known Gaussian beam to a larger Ring Mode, ranging from 85 µm to 210 µm, with a single or dual laser set-up. This enables you to build fine structures and bulky sections precisely and quickly by changing the beam shape in milliseconds. The laser is always in focus without complicated optics.

Beam Shaping.
In Milliseconds.

1.2 kW AFX nLIGHT

From Gaussian to ring-shaped beams, from 85 – 210 µm spot size and 55 – 140 µm with FDR (fine detail resolution)

Latest Scanner Technology

SCANahead Technology: 20 bit low drift

Full field overlap

Within the dual laser option M 290-2 FLX each laser covers the full 250 x 250 mm

Monitoring

EOS powder bed monitoring: fault detection in the powder bed, e.g., uneven powder application.

EOS OT monitoring (optical tomography): layer-by-layer information about the energy input into the component.

Plug-In Modules

Different materials require different technical approaches from direct cooled base plates up to 500 °C heating. You can change these modules based on your demand. How about e.g., a build plate reduction – all this works.

FDR Configuration

For demanding applications utilize a spot size ranging from 55 - 140 µm

Adapted Laminar Flow

Faster processing can create more by-products, which must be removed.

Thermal Management

Power is nothing without control. The additional thermal load is managed by 3x the chilling capacity compared to standard EOS M 290.

Technical Data

Download Data Sheet

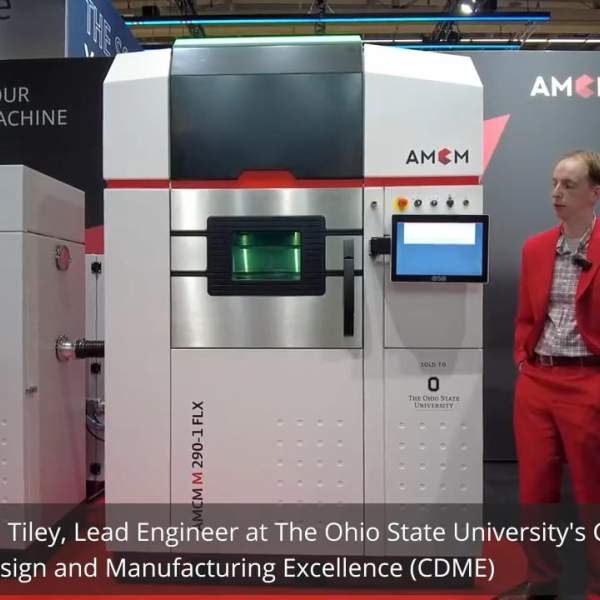

AMCM M 290-1 FLX

Building volume	250 x 250 x 325 mm \| 9.85 x 9.85 x 12.8 in
Laser type	Yb Fiber laser
Nominal power	1 x 1,200 W
Wave length	1070 nm
Precision optics	F-theta-lens
Scanner	standard scanner with active cooling
Scanning speed	up to 7.0 m/s \| 23 ft./sec
Focus diameter	85 - 210 μm \| 0.003 - 0.008 in
Process gas cooling	integrated
Power supply	32 A / 400 V
Power consumption	15 kW
Inert gas supply	7,000 hPa; 20 m³/h \| 102 psi; 706 ft³/h
Dimensions (W x D x H)	2,680 x 2,120 x 2,400 mm \| 105.5 x 83.5 x 94.5 in
Recommended installation space	min. 4,800 x 3,600 x 3,500 mm \| 189 x 142 x 138 in
Weight	approx. 1,250 kg \| 2,756 lb

Processes must all be re-qualified by customer. 

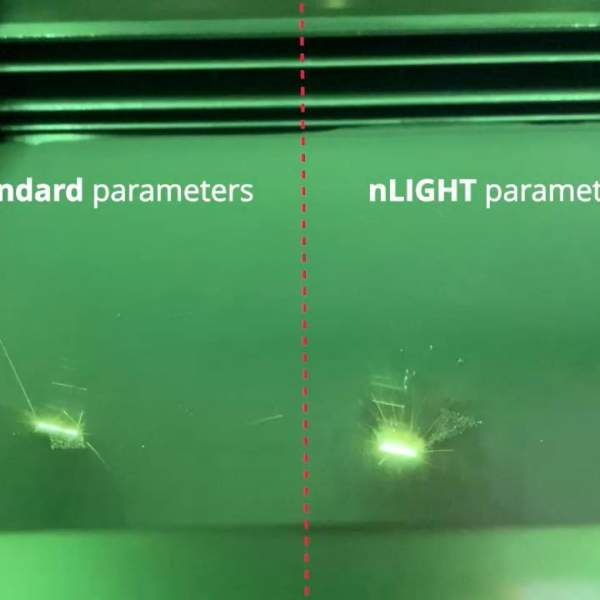

Consulting for parameter set transfer from EOS M 290 (400 W) to AMCM M 290-1 FLX on request.

AMCM M 290-1 FLX (FDR)

Building volume (height inclusive build plate)	220 x 220 x 325 mm \| 8.66 x 8.66 x 12.8 in
Laser type	Yb Fiber laser
Nominal power	1 x 1,200 W
Wave length	1070 nm
Precision optics	F-theta-lens
Scanner	standard scanner with active cooling
Scanning speed	up to 7.0 m/s \| 23 ft./sec
Focus diameter	55 - 140 μm \| 0.002 - 0.006 in
Process gas cooling	integrated
Power supply	32 A / 400 V
Power consumption	15 kW
Inert gas supply	7,000 hPa; 20 m³/h \| 102 psi; 706 ft³/h
Dimensions (W x D x H)	2,680 x 2,120 x 2,400 mm \| 105.5 x 83.5 x 94.5 in
Recommended installation space	min. 4,800 x 3,600 x 3,500 mm \| 189 x 142 x 138 in
Weight	approx. 1,250 kg \| 2,756 lb

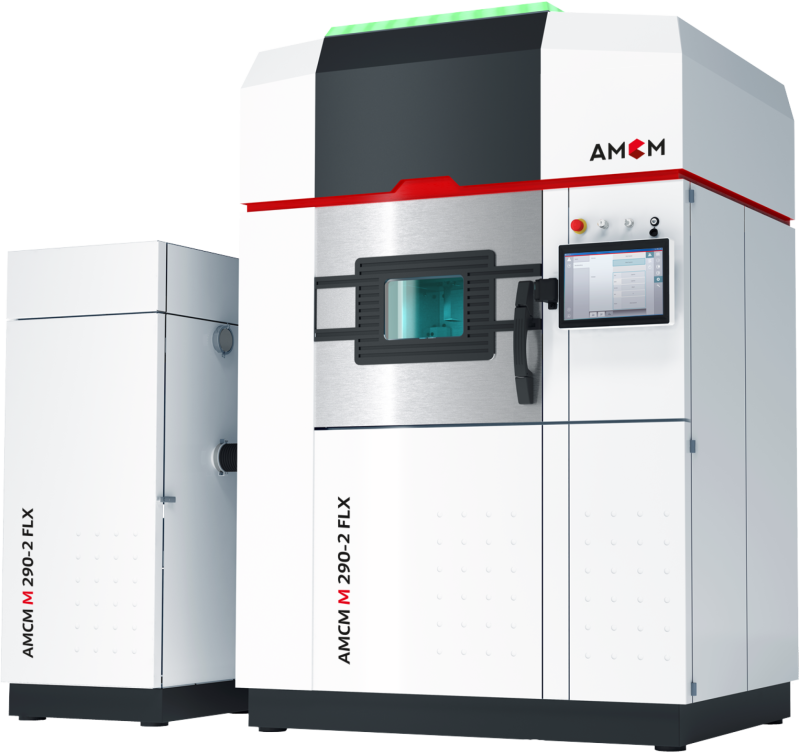

AMCM M 290-2 FLX

Building volume (height inclusive build plate)	250 x 250 x 325 mm \| 9.85 x 9.85 x 12.8 in
Laser type	Yb Fiber laser
Nominal power	2 x 1,200 W
Wave length	1070 nm
Precision optics	F-theta-lens
Scanner	standard scanner with active cooling
Scanning speed	up to 7.0 m/s \| 23 ft./sec
Focus diameter	85 - 210 μm \| 0.003 - 0.008 in
Process gas cooling	integrated
Power supply	32 A / 400 V
Power consumption	17 kW
Inert gas supply	7,000 hPa; 20 m³/h \| 102 psi; 706 ft³/h
Dimensions (W x D x H)	2,680 x 2,120 x 2,400 mm \| 105.5 x 83.5 x 94.5 in
Recommended installation space	min. 4,800 x 3,600 x 3,500 mm \| 189 x 142 x 138 in
Weight	approx. 1,350 kg \| 2,976 lb

Processes must all be re-qualified by customer. 
Consulting for parameter set transfer from EOS M 290 (400 W) to AMCM M 290-2 FLX on request.

AMCM M 290-2 FLX (FDR)

Building volume (height inclusive build plate)	220 x 250 x 325 mm \| 8.66 x 9.85 x 12.8 in
Laser type	Yb Fiber laser
Nominal power	1 x 1,200 W
Wave length	1070 nm
Precision optics	F-theta-lens
Scanner	standard scanner with active cooling
Scanning speed	up to 7.0 m/s \| 23 ft./sec
Focus diameter	55 - 140 μm \| 0.002 - 0.006 in
Process gas cooling	integrated
Power supply	32 A / 400 V
Power consumption	15 kW
Inert gas supply	7,000 hPa; 20 m³/h \| 102 psi; 706 ft³/h
Dimensions (W x D x H)	2,680 x 2,120 x 2,400 mm \| 105.5 x 83.5 x 94.5 in
Recommended installation space	min. 4,800 x 3,600 x 3,500 mm \| 189 x 142 x 138 in
Weight	approx. 1,250 kg \| 2,756 lb
