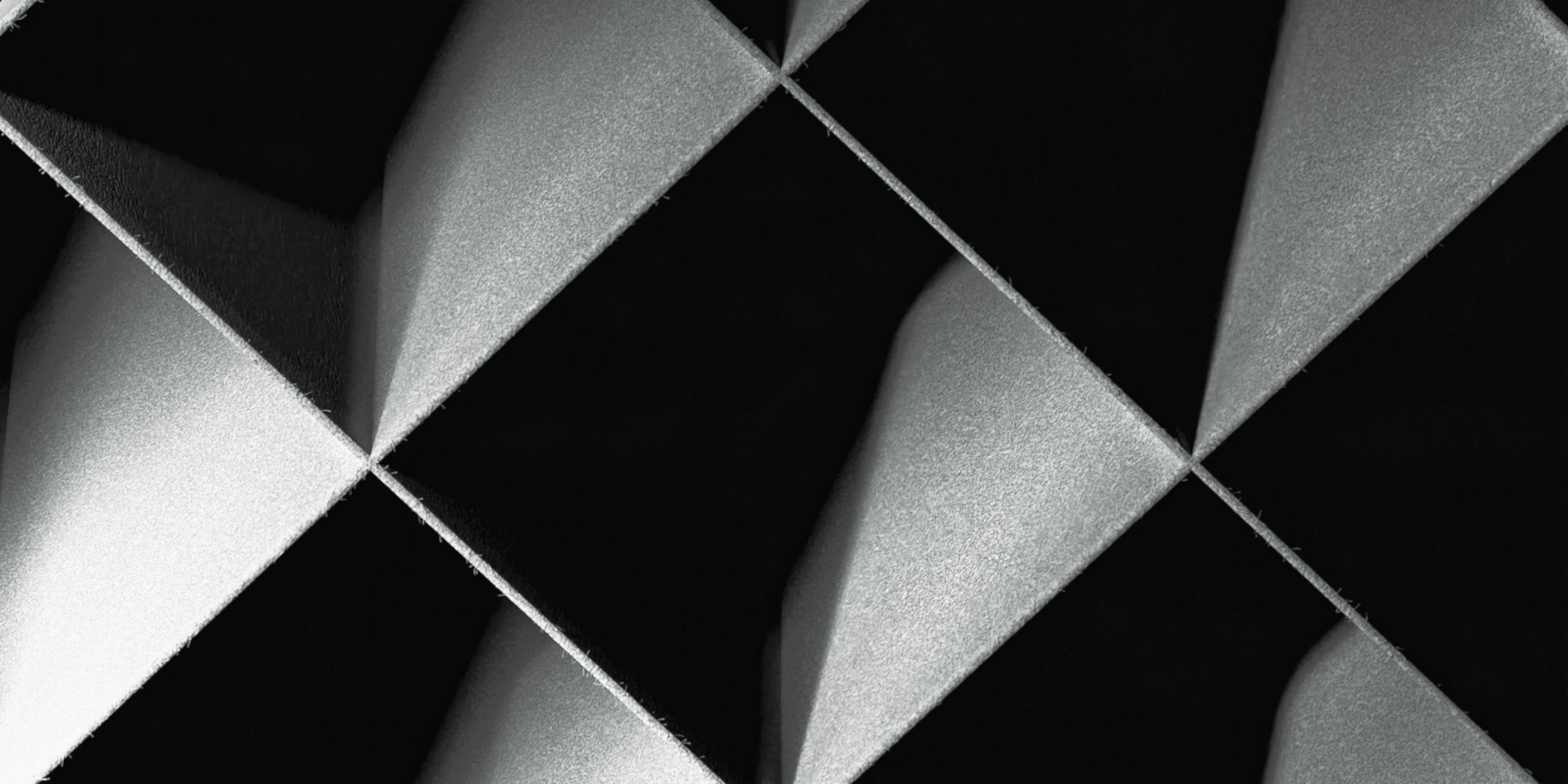

3D-Printed Anti-Scatter Grid in Tungsten
M 290-2
FDR

Finest Wall Structures

Hair-thin Structures.

Wall structures of down to 100 µm – with the AMCM M 290-2 FDR you can do it. We can modify the AMCM M 290-2 FDR to your specific need and a range of materials such as tungsten.

  • 2x
    40 µm spot
  • 100µm
    Wall thickness
  • 100%
    Full 400 W laser power

Special Software.
For Refractive Tungsten.

The ideal combination of finest spot sizes and large build volume enables precise parts such as anti-scatter grids.

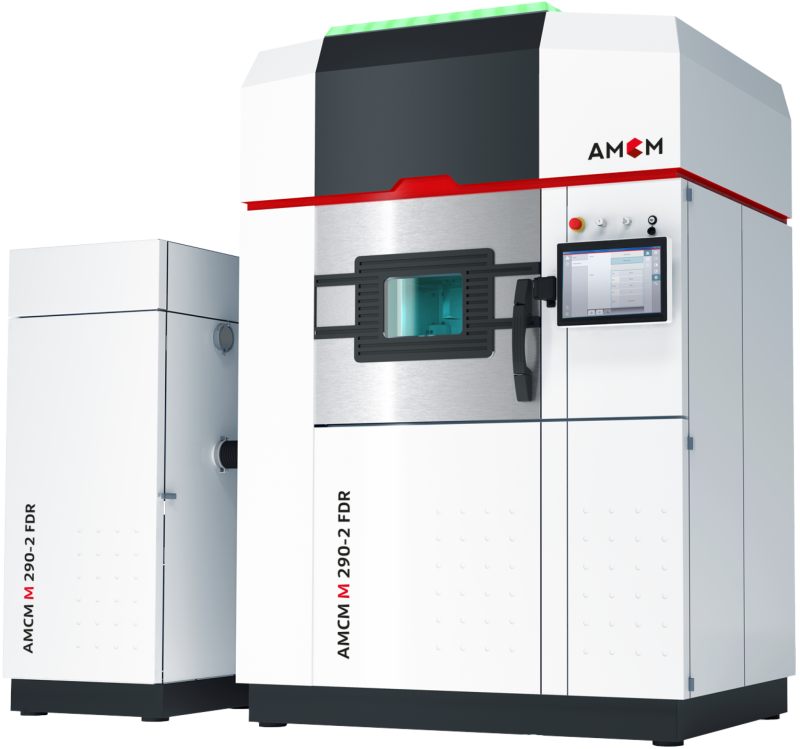

AMCM 3D printing system M 290-2

Fine Detail Optics

Filigree parts require finer tools. Laser beam diameter down to 40 µm.

Thermal Management

Very narrow beam diameters require a very rigid thermal management of the optics.

Plug-In Modules

Different materials require different technical approaches from direct cooled base plates up to 500 °C heating. You can change these modules based on your demand. How about e.g. a build plate reduction – all this works.

Technical Data

Download Data Sheet

AMCM M 290-2 FDR

Building volume (W x D x H) 250 x 220 x 325 mm | 9.85 x 8.65 x 12.8 in (height incl. build plate)
Laser type Yb Fiber laser
Nominal power 2 x 400 W
Wave length 1070 mm
Precision optics F-theta-lens
Scanner digital scanner with active cooling
Scanning speed up to 7.0 m/s | 23 ft./sec
Focus diameter approx. 40 µm | 0.0016 in
Process gas cooling integrated
Power supply 32 A / 400 V
Power consumption 15 kW
Inert gas supply 7,000 hPa; 20 m³/h | 102 psi; 706 ft³/h
Dimensions (W x D x H) 2,680 x 2,120 x 2,400 mm | 105.5 x 83.5 x 94.5 in
Recommended installation space min. 4,800 x 3,600 x 3,500 mm | 189 x 142 x 138 in
Weight approx.1,350 kg | 2,756 lb
