Impeller made out of Inconel with a volume rate of 12 mm3/sec at 40 µm layer thickness
M 450

Increase of laser power

Increase of space and laser power.

The  AMCM M 450 offers the bit more in build envelope you just need, combined with a significant increase of laser power. All this available now with the AFX nLIGHT laser.

  • 4x
    400 W, 1 kW, 1.2 kW AFX nLIGHT
  • 25%
    Larger build envelope
  • 5x
    Powder feeding capacity
  • 30+
    EOS legacy parameters

Larger Build Envelope.
More Power.

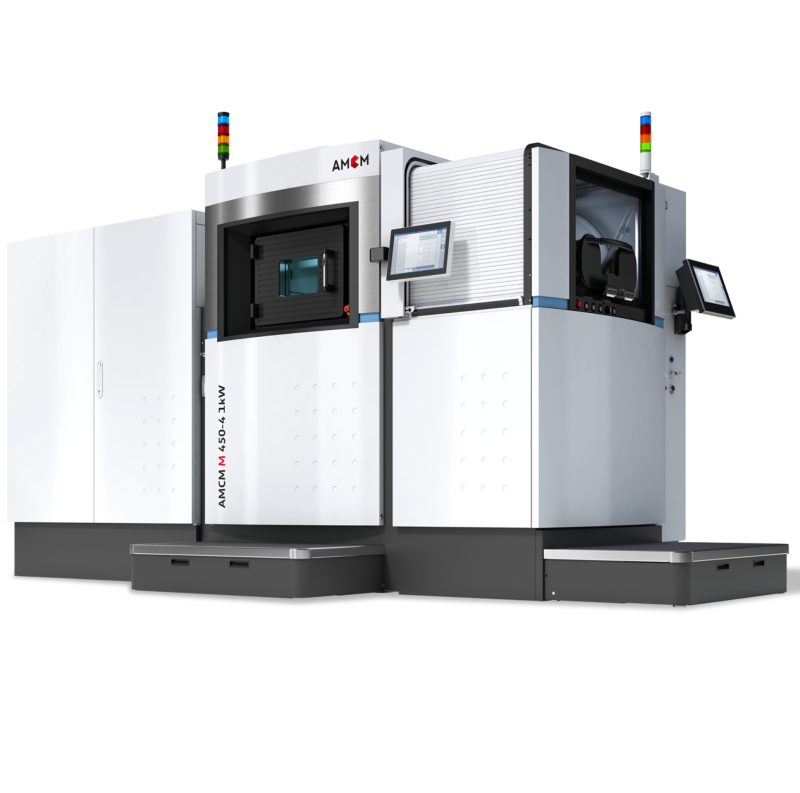

AMCM M 450-4 1kW 3D printing system angeled view

Light Engine

It‘s your choice: 4 x 1kW, 4 x 1,2 kW or 4 x 400 W.

Build Envelope

450 x 450 x 400 mm (W x D x H) equals 25 % more build envelope compared to standard EOS M400.

Powder Management

For our closed and open loop solution we rely on our partner Volkmann. If these solutions do not fit your need, we are open for a tailormade solution.

Beam Shaping

If equipped with 1.2 kW AFX nLIGHT: From Gaussian to ring-shaped beams, from 85 – 210 µm spot size.

Technical Data

AMCM M 450-4

Building volume (W x D x H) 450 x 450 x 360 mm (400 mm w/o heating) | 17.71 x 17.72 x 14.17 in (15.75 in w/o heating)
Laser type Yb Fiber laser
Nominal power 4 x 400 W
Wave length 1070 nm
Precision optics F-theta-lens
Scanner high-speed scanner with active cooling
Scanning speed up to 7.0 m/s | 23 ft./sec
Focus diameter approx. 85 µm | 0.003 in
Process gas cooling integrated
Power supply 63 A / 400 V
Power consumption 23 kW
Inert gas supply 7,000 hPa; 20 m³/h | 102 psi; 706 ft³/h
Dimensions (W x D x H) 4,880 x 2,440 x 3,308 mm | 192.1 x 96.1 x 130.2 in
Recommended installation space min. 6,500 x 6,000 x 4,173 mm | 256 x 236 x 164 in
Weight approx. 5,980 kg | 13,184 lb

AMCM M 450-4 1kW

Building volume (W x D x H) 450 x 450 x 360 mm (400 mm w/o heating) | 17.71 x 17.72 x 14.17 in (15.75 in w/o heating)
Laser type Yp Fiber laser
Nominal power 4 x 1 kW
Wave length 1070 nm
Precision optics F-theta-lens
Scanner high-speed scanner with active cooling
Scanning speed up to 7.0 m/s | 23 ft./sec
Focus diameter approx. 85 µm | 0.003 in
Process gas cooling integrated
Power supply 63 A / 400 V
Power consumption 30 kW
Inert gas supply 7,000 hPa; 20 m³/h | 102 psi; 706 ft³/h
Dimensions (W x D x H) 4,880 x 2,440 x 3,308 mm | 192.1 x 96.1 x 130.2 in
Recommended installation space min. 6,500 x 6,000 x 4,173 mm | 256 x 236 x 164 in
Weight approx. 6,170 kg | 13,603 lb

AMCM M 450-4 FLX

Building volume (W x D x H) 450 x 450 x 360 mm (400 mm w/o heating) | 17.71 x 17.72 x 14.17 in (15.75 in w/o heating)
Laser type Yb Fiber laser
Nominal power 4 x 1.2 kW
Wave length 1070 nm
Precision optics F-theta-lens
Scanner high-speed scanner with active cooling
Scanning speed up to 7.0 m/s | 23 ft./sec
Focus diameter 85 - 210 μm | 0.003 - 0.008 in
Process gas cooling integrated
Power supply 63 A / 400 V
Power consumption 23 kW
Inert gas supply 7,000 hPa; 20 m³/h | 102 psi; 706 ft³/h
Dimensions (W x D x H) 4,880 x 2,440 x 3,308 mm | 192.1 x 96.1 x 130.2 in
Recommended installation space min. 6,500 x 6,000 x 4,173 mm 256 x 236 x 164 in
Weight approx. 5,980 kg | 13,184 lb
